Hi all

Does anyone recognise this radiator or the valve at the bottom of it?
The valve is leaking and my plumber is off to try to find a replacement...

5938F16C-66C3-42E6-B265-13F63AA85317_1_105_c.jpeg1516F525-5DF2-4187-B373-A9694D08F351_1_105_c.jpeg5938F16C-66C3-42E6-B265-13F63AA85317_1_105_c.jpeg
Thanks

Graham
Post automatically merged:

Sorry, I should have been more clear.

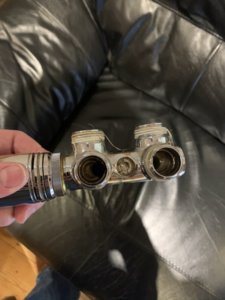

The valve says Drayton TRV4 on it. The leak is coming from the back of the pipe the valve is attached to, in the centre where the little hole is between the two pipes in this pic:

Last edited:

Quick google brought this up
That looks perfect, thanks Simon!

My plumber told me it needed replaced, then went off to find a replacement and told me he couldn’t find one so I’d need a new radiator!

Thanks for your help!

Graham

Where is it leaking from. If from the body of the valve, you need a new one. If from the radiator or pipework attachment points, may just need one or more joints re-making.

Where is it leaking from. If from the body of the valve, you need a new one. If from the radiator or pipework attachment points, may just need one or more joints re-making.
Do you see the final picture I posted, showing the back of the h-block (now that I know that’s what it is 😆) after it had been removed?

between the two bits that connect to the system there is a little interned thing that you can turn with an Allen key. Not sure why that thing is there. It just seems to open and close the path between the in and out sides of the h-block. That’s where the leak was coming from.
Thanks
Graham

Do you see the final picture I posted, showing the back of the h-block (now that I know that’s what it is 😆) after it had been removed?

between the two bits that connect to the system there is a little interned thing that you can turn with an Allen key. Not sure why that thing is there. It just seems to open and close the path between the in and out sides of the h-block. That’s where the leak was coming from.
Thanks
Graham
*little indented thing

not little interned thing


gmartine

Gas Engineer
What is that some sort of bypass in the body? I can't believe that can't be made leak proof with a bit of effort, after all you have enough paste and PTFE I think (not a good sign) everywhere else. Unscrew it completely and see, perhaps a washer or O-ring is worn if not wodge in some Boss White.

Wodge = wedge and bodge.

What is that some sort of bypass in the body? I can't believe that can't be made leak proof with a bit of effort, after all you have enough paste and PTFE I think (not a good sign) everywhere else. Unscrew it completely and see, perhaps a washer or O-ring is worn if not wodge in some Boss White.

Wodge = wedge and bodge.
Yes, I think it must be some sort of bypass. Can’t think of any other reason for it to be there and I agree, it must be possible to make it leak proof!
It’s held in by a little clip and after adjusting that clip (poking it with a screwdriver) I’m not seeing any leaks when I run water through it from a tap.

Will see if I can get it back in place...

cheers!

Graham

What is that some sort of bypass in the body?
Yes. When shut it will isolate the flow and return legs of the H-piece, i.e. a two-pipe configuration. For use on a one-pipe system, it sets the balance between flow through the radiator and though the bypass section. Don't see them in the UK very often IME, probably came with an imported 'designer' radiator.

Yes. When shut it will isolate the flow and return legs of the H-piece, i.e. a two-pipe configuration. For use on a one-pipe system, it sets the balance between flow through the radiator and though the bypass section. Don't see them in the UK very often IME, probably came with an imported 'designer' radiator.
Thanks chuck, that’s useful info.

I’m pretty sure mine is a two-pipe system.
These are the pipes going to/from the radiator on the other side of the wall.

so I guess I just need to make sure that piece is shut and leak proof.

cheers!

Graham
